Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
| Quantity: | |
|---|---|

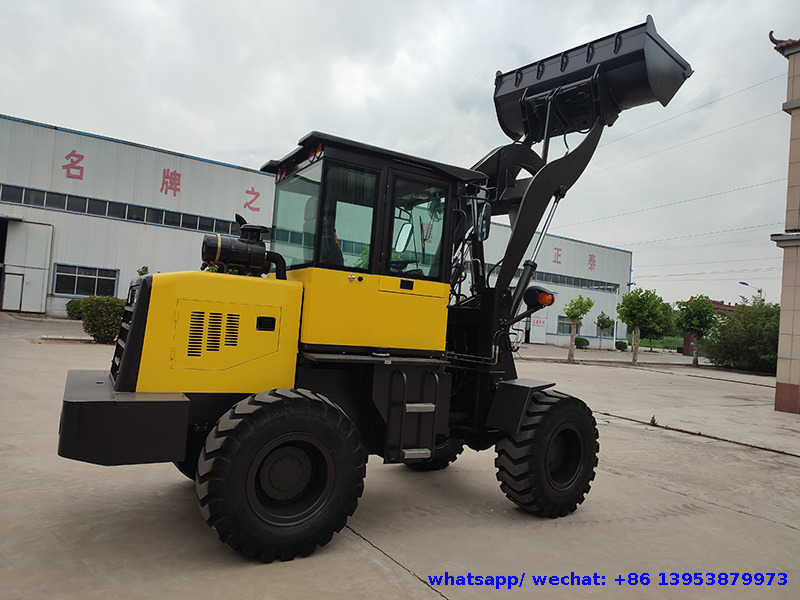

ZT926
ZT. MACHINE
Its smart hydraulic system automatically adapts to workload - like having a co-pilot
Automatically adapts to workload demands, optimizing performance for any task
Our R&D team treats global user feedback like treasure maps
Product Specifications
Description |
Specification |
rated load(kg) |
1500 |
Rated bucket capacity（m³） |
0.7 |
Equipment weight（kg) |
4700 |
Max.dump height（MM） |
3210 |
Max.dump reach（MM） |
880 |
Automatic leveling ability |
Y |
steering angle（°） |
35 |
Min turning radius（MM） |
5060 |
Wheel base（MM） |
2250 |
Tread（MM） |
1490 |
Min.ground clearance（MM） |
360 |
Overall dimensions (l×w×h)mm（MM） |
5500×1860×2650 |
travel speed（km/h） |
|
Forward gear I |
0～9 |
II |
0～35 |
reverse gear I |
0～9 |
II |
0～35 |
Engine Model |
Xinchai498 |
Type |
Water injection four-stroke inline |
Rated power（kW） |
40 |
Rated speed（rpm） |
2200 |
The voltage(V) |
12 |
This cockpit is a feat of ergonomic science. Its dimensions are calculated for optimal operator posture and movement. The seat employs sophisticated damping algorithms for dynamic stability.
The human-interface design extends to the logical layout of low-effort, high-feedback control levers and a visually optimized glasshouse.
Ergonomic dimensions for optimal posture and movement
Sophisticated damping algorithms for dynamic stability
Low-effort, high-feedback control levers
Visually optimized glasshouse design
Every element is data-driven to minimize physical stress and maximize operational accuracy.
Product Details
Packaging & Shipping
Container 40HC 2 units can be installed
