Heavy Load Capacity – 1500 kg rated load with 0.7 m³ bucket for higher efficiency.
Stable & Durable – 4700 kg weight ensures solid performance in tough jobs.
Efficient Operation – 3210 mm dump height with auto-leveling for faster, cleaner loading.
Flexible Maneuvering – 35° steering and 5060 mm turning radius for tight spaces.
Strong Power – 40 kW Xinchai engine and 35 km/h speed for fast, reliable work.
Good Ground Clearance – 360 mm clearance and compact size for rough terrain.
| Quantity: | |
|---|---|
ZT926
ZT. MACHINE

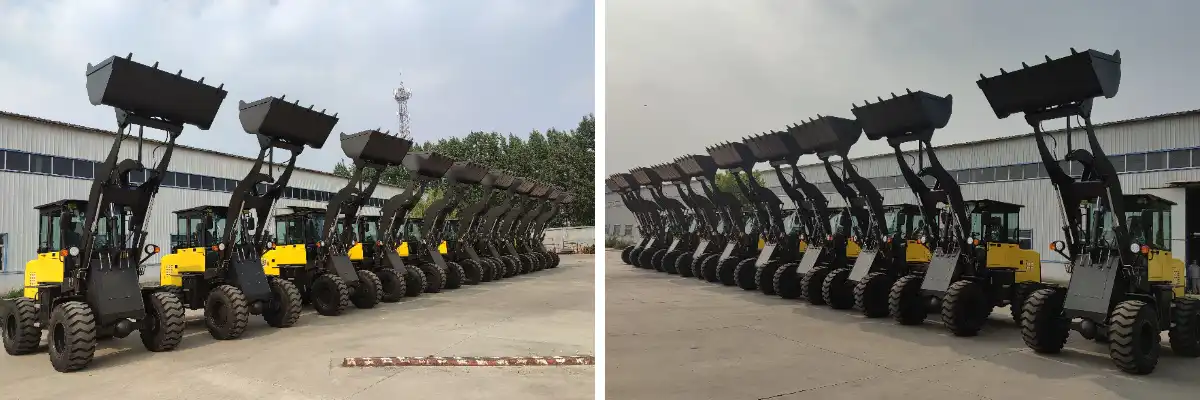

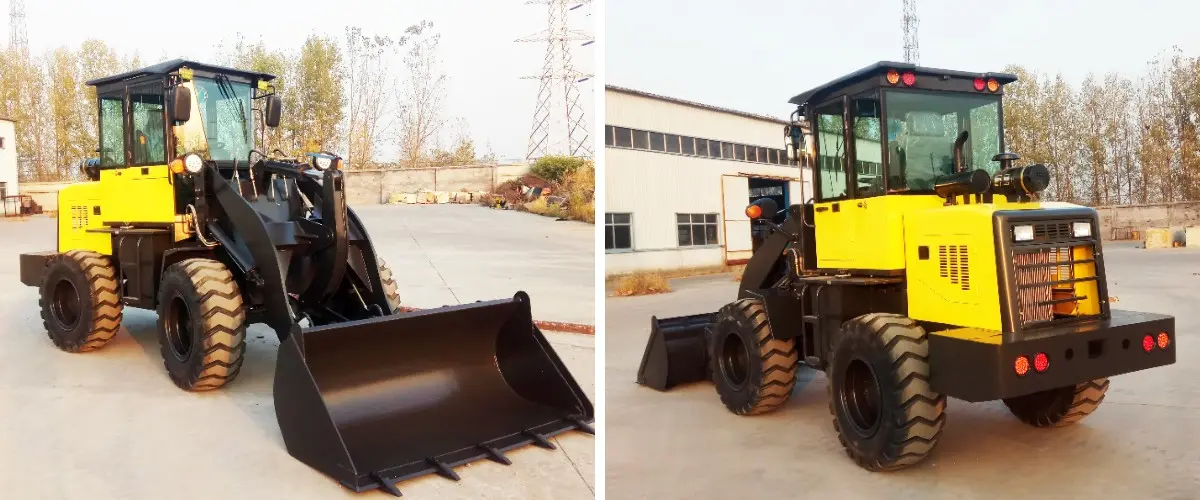

Compact Powerhouse! Meet the ZT926 Loader-Small Size, Big Muscle
Strong & Steady:
Xinchai 498 diesel engine, 55HP → delivers smooth power even under heavy loads. Sips fuel, works hard!
Turns on a Dime:
35° steering angle + 5060mm turning radius → fits where big loaders can't. Your go-to for tight spots!
Auto-Leveling Magic:
Bucket stays level while lifting → less spillage, faster loading, and easier operation. Perfect for beginners too!
Built Solid:
Weighs 4700kg + balanced chassis → super stable on rough ground. No shake, just break(through)!
Handles (Almost) Everything:
0.7m³ bucket → great for sand, gravel, feed, fertilizer.
Lifts up to 3210mm → loads trucks & hoppers with ease.
#CompactLoader #ZT926 #ToughAndNimble #FarmEquipment #ConstructionTools
Product Specifications
Description | Specification |
rated load(kg) | 1500 |
Rated bucket capacity（m³） | 0.7 |
Equipment weight（kg) | 4700 |
Max.dump height（MM） | 3210 |
Max.dump reach（MM） | 880 |
Automatic leveling ability | Y |
steering angle（°） | 35 |
Min turning radius（MM） | 5060 |
Wheel base（MM） | 2250 |
Tread（MM） | 1490 |
Min.ground clearance（MM） | 360 |
Overall dimensions (l×w×h)mm（MM） | 5500×1860×2650 |
travel speed（km/h） | |
Forward gear I | 0～9 |
II | 0～35 |
reverse gear I | 0～9 |
II | 0～35 |
Engine Model | Xinchai498 |
Type | Water injection four-stroke inline |
Rated power（kW） | 40 |
Rated speed（rpm） | 2200 |
The voltage(V) | 12 |
Product Details

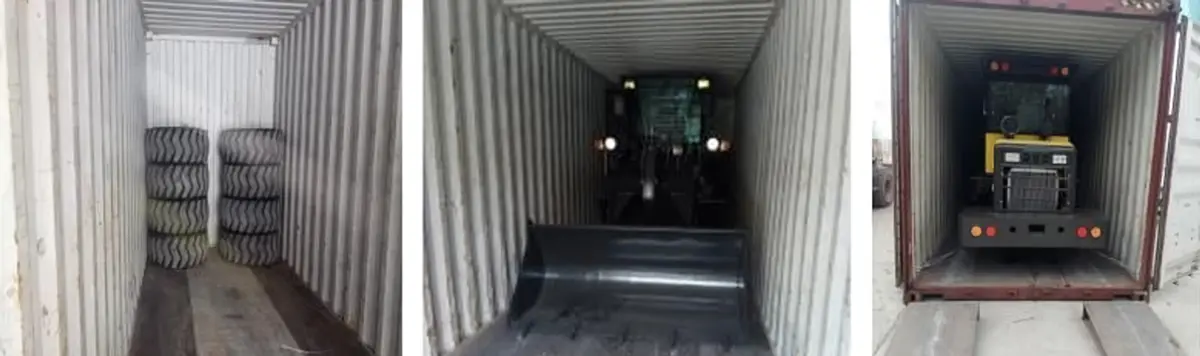

Packaging & Shipping
Container 40HC 2 units can be installed
Want a quote or catalog? DM us! Let's build a successful partnership
